Long Rang Remote UHF CC1120 26dbm Wireless 1KM RF ISM Data Transmitter

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    $6.00
Report Suspicious Activity
Overview
Quick Details
D/C:
16,17
Package:
SMD
Model Number:
VT-CC1120PL-433
Type:
module
Brand Name:
v-chip
Place of Origin:
Guangdong, China (Mainland)
product name:
UHF CC1120 433MHz Wireless 1KM RF ISM data transmitter
Dimension:
36.3*22.2*4.0mm
Receiver sensitivity:
-125dBm
Voltage:
3.0~3.6V
Data Rate:
0 ~200kbps
Working temperature:
-40°C~85°C
Transmitting Current:
≤250mA at 26dBm
Receiving Current:
≤25mA
Standby Current:
≤1uA
Modulation way:
2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard package for Long Range remote UHF CC1120 433MHz Wireless 1KM RF ISM data transmitter
Port
shenzhen
product description


VT-CC1120PL-433M is based on RF Transceiver CC1120 of TI Chipcon,CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. Added PA, LNA circuit, enhanced output power and sensitivity.The module integrated many RF functions thus you can use it conveniently and reducing your development time.


Features

433MHz wireless transceiver, Frequency range:410~480MHz

Programmable baseband modulator with 2-FSK, 2-GFSK, 4-FSK,4-GFSK,MSK,OOK/ASK3.3V , max power +26 dBm

Transmit distance reached 5000 meters, and sensitivity reached -125dBm when setting is 1.2kbps, DEV=4KHz,RX BW=25KHz

Powerful signal processor, deal with strong signal very clear.

Programmable data rate to 200Kbps

Low power consumption and operating supply voltage:3.0~3.6V DC

Point to point and point to multi-point communication.

Support carrier wave and digital RSSI output.

Separate 128-byte RX and TX FIFOs

High stability and industrial reliability

Applications


Wireless Metering and Wireless Smart Grid (AMR and AMI)

Logistics Tracking System, Warehouse patrol, Electronic label

Industrial monitoring and control

AMR – Automatic Meter Reading

Home and building automation

Consumer Electronics products of wireless control

Wireless alarm and security systems

Wireless sensor networks

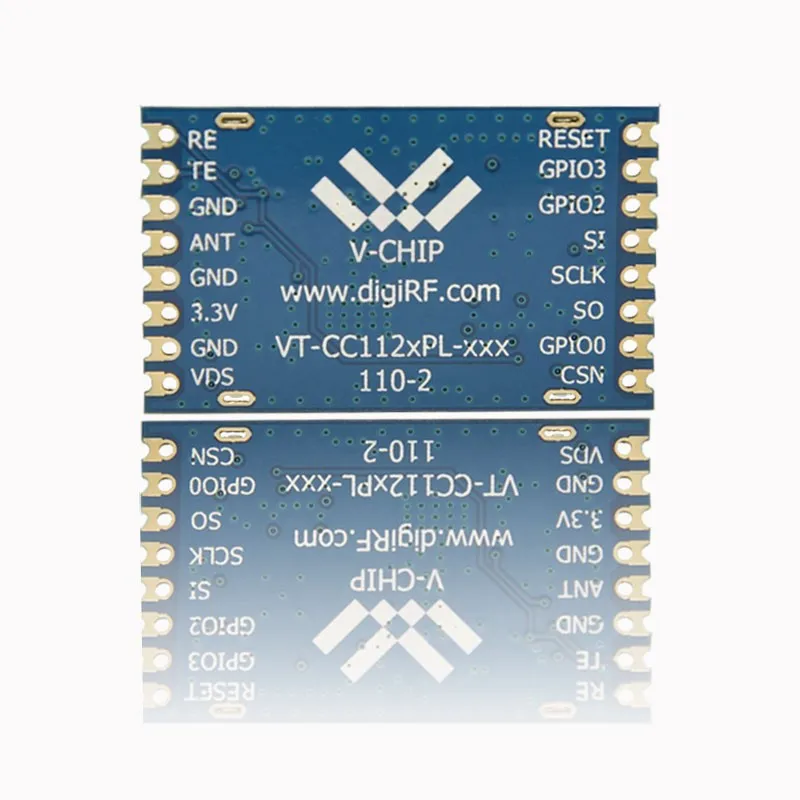

Pin Diagram
Pin name
Pin type
Description
RESET_N
Digital in
Reset; low level valid
GDIO3
Digital in/out
Digital I/O, register configuration
GDIO2
Digital in/out
Digital I/O, register configuration
SI
Digital In
Digital in (SPI)
SCLK
Digital In
Time input (SPI)
SO/GPIO1
Digital In/out
Digital output (SPI) or general digital In/out port
GDIO0
Digital In/out
Digital I/O, register configuration
CSN
Digital I/O
Module select (SPI), low level valid
RE
Status control
RX=0,TX=1,SLEEP=0
TE
Status control
RX=1,TX=0,SLEEP=0
GND
ground

ANT
Antenna port
Impedance 50 ohm
3.3V
Work power
DC 3.0-3.6V
VDS
Power amplifier
Power amplifier, default short circuit

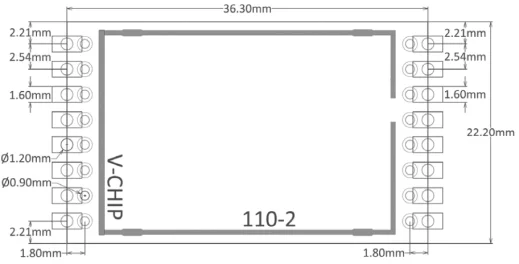

Size data
Packing & Delivery

Our Services

1, Any inquiries will be replied in 12 hours.
2, OEM/ODM service.
* Customer's own logo is available;
* We help customer realize their own thinking, idea, design;
3,After-sale Service.
* All products passed QC before shipping;
* All products will be well-packed before shipping;
* All products have 1 year guarantee. Damaged item is free to change or return in warranty period.
4, Payment Terms: T/T,Western Union/paypal/MoneyGram.
5, Shipping Company: China air post/HK,Singapore post/EMS/DHL/FEDEX.

FAQ
Description
Reason and Solution




Can’t communication
1.The power supply connect not well, check the module VCC whether it is out of maximum rating.

2.The signal line connect not well, check the module SPI interface.

3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration.

4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication.



Communication distance is too short
1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna.

2.The work space contains a same frequency interference source, or a strong magnetic field interference,power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance.

3.The power supply is not strong. Check the voltage and the current whether it is enough.




High data error
1.The power supply ripple is too big, Change the power supply.

2.Check the module register configuration, it is recommended to set as the CC1120-datasheet.

3.There is a carrier frequency interference, change the channel.

4.The antenna unmatched to the module RF interface, change another matched antenna.
