Competitive Price Usb 1200Bps-500Kbps Data Rate 433Mhz Transmitter Module

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    US $12.00
Report Suspicious Activity
Overview
Quick Details
D/C:
2017
Package:
smd
Model Number:
VT-DTMUA5-433M
Type:
wireless module
Brand Name:
V-CHIP
Place of Origin:
Guangdong, China (Mainland)
Product name:
Usb 1200Bps-500Kbps Data Rate 433Mhz Transmitter Module
Central frequency:
433MHz
Output Power:
Max: 20dBm
Sensitivity:
20dBm
USB Interface Rate:
Max 230.4kbps
Transmit Current:
<250mA
Receive Current:
<55mA
Input Voltage:
5.0VDC±10%
Antenna:
50ohm
Size:
91.5 *26.0 *12.0mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment

Competitive Price Usb 1200Bps-500Kbps Data Rate 433Mhz Transmitter Module

The VT_DTMUA5-433M module is designed as a wireless sub module for wireless communication between devices like controls, POS systems, data collectors etc. It offers several addressing modes and relieves the host systems of wireless-specific task such as checksum calculation, address resolution.

It can be deployed whenever the wireless exchange of data packet between two or more parties is required.

A USB interface (Virtual COM Port Device) whose data rate is adjusted flexibly is available for communicating with the host systems. The data rate can be adjusted from 2.4kbps to 230.4kbps.

Thanks to its small size and the external SMA antenna connector, the module can easily be installed in existing systems without any external circuits.

Detail Parameters




Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.



Parameter

Value

Condition/Note

Center Frequency

433MHz

Programmable

Modulation

GFSK

Customize for ASK/FSK/OOK/MSK

Output Power

Max: 27dBm

Programmable

Sensitivity

20dBm

1.2kbps

Radio Data Rate

Max 500kbps

Programmable

USB Interface Rate

Max 230.4kbps

Programmable

Protocol Format

8N1

Programmable

Transmit Current

<250mA

Depend on output power

Receive Current

<55mA



Distance

1200 meter

Open area; 27dBm; 2.4kbps

Operate Humidity

10%~90%



Operate Temperature

-40℃~85℃



Input Voltage

5.0VDC±10%

±100mV

Antenna

50ohm



Size

91.5 ×26.0 × 12.0mm



Note:

1. Noted that higher radio data rate causes of shorter communication disdance.

2. Noted that higher radio data rate causes of lower sensitivity.

3. Noted that lower input voltage causes of lower output power.

4. Noted that the operate temperature out of range -40℃~85℃ will influence the              center frequency.

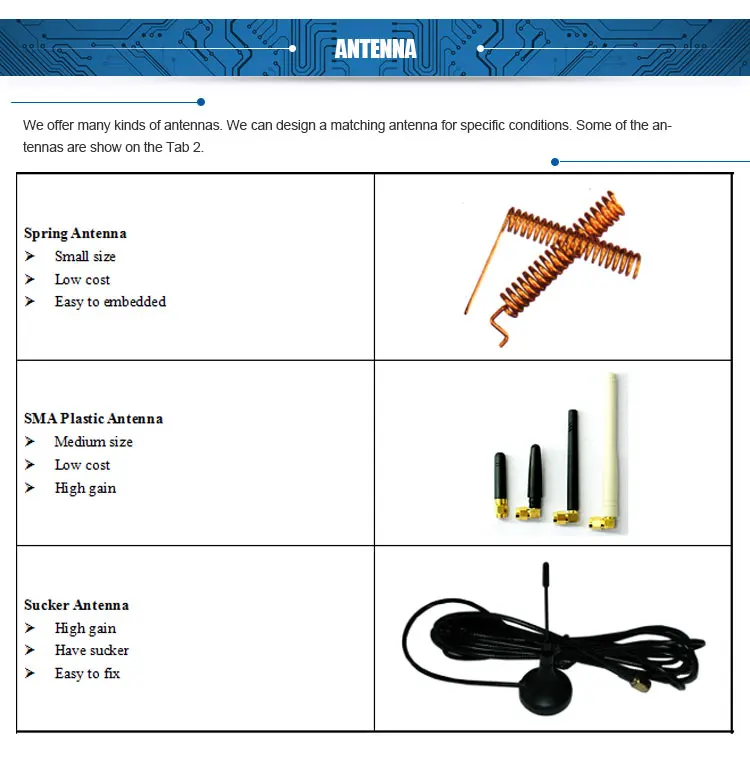

5. Be sure to use a match antenna and mount it in the right way.

6.The environment will influence the communication disdance much.

Features




Related Product
Applications


Troubles and Processing Methods

Troubles

Processing Methods

Short distance

1. Check the input voltage; ensure it is not lower than 4.5VDC.

2. Configure the output power parameter to the max.

3. Check the antenna; ensure it is not to be shielded.

4. Configure the radio data rate to a lower value.

Communicating failed

1. Check the input voltage.

2. Reconnect the module to the host.

3. Addresses of the communicating modules are all right.

High error rate

1. Antenna does not match to the module.

2. Co-Channel interference, try another channel.



Company Information



Packaging & Shipping


FAQ


Description

Reason and Solution

Can’t communication

1.The power supply connect not well, check the module VCC whether it is out of maximum rating.

2.The signal line connect not well, check the module SPI interface.

3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration.

4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication.

Communication distance is too short

1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna.

2.The work space contains a same frequency interference source, or a strong magnetic field interference, power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance.

3.The power supply is not strong. Check the voltage and the current whether it is enough.

High data error

1.The power supply ripple is too big, Change the power supply.

2.Check the module register configuration, it is recommended to set as the CC1120-datasheet.

3.There is a carrier frequency interference, change the channel.

4.The antenna unmatched to the module RF interface, change another matched antenna.
