Factory Price 1200Bps-200Kbps Data Rate 433Mhz 868Mhz 915Mhz 3000M Remote Receiver Module

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    US $6.00
Report Suspicious Activity
Overview
Quick Details
D/C:
2017
Package:
smd
Model Number:
VT-CC1120PL-433M/868M/915M
Type:
wireless module
Brand Name:
V-CHIP
Place of Origin:
Guangdong, China (Mainland)
Product name:
1200Bps-200Kbps Data Rate 433Mhz 3000M Remote Receiver Module
Operating supply voltage:
DC 3.0~3.6V
Central frequency:
433MHz/868MHz/915MHz
Frequency accuracy:
±10ppm
Modulation format:
2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK
Transmit power:
MAX:26dBm(3.3V)
TX current consumption:
≤250mA
Receiver sensitivity:
-125dBm
RX current consumption:
≤25mA
Sleep State current consumption:
<1uA
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment

Factory Price 1200Bps-200Kbps Data Rate 433Mhz 868Mhz 915Mhz 3000M Remote Receiver Module




VT-CC1120PL-433/868/915M is based on RF Transceiver CC1120 of TI Chipcon,CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. Added PA, LNA circuit, enhanced output power and sensitivity.The module integrated many RF functions thus you can use it conveniently and reducing your development time.

Detail Parameters




Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.



Parameter

Type

Condition/Note

Operating supply voltage

DC 3.0~3.6V



Frequency range

820-960MHz

Programmable

Frequency accuracy

±10ppm



Modulation format

2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK

Programmable

Transmit power

MAX:26dBm(3.3V)

Programmable

Receiver sensitivity

-125dBm

1.2kbps DEV=4KHz RX BW=25KHz

TX current consumption

≤250mA



RX current consumption

≤25mA



Sleep State current consumption

<1uA



Transmit distance

5000M



Antenna impedance

50ohm



Operating voltage

3.0~3.6V



Operating temperature

-40~+85 °C



Storage temperature range

-40~+125°C

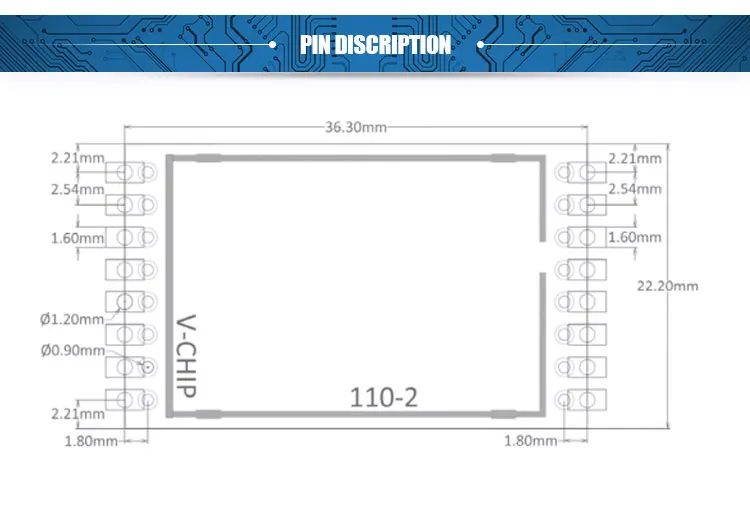

Dimension

36.3×22.2mm×4.0 mm(With shield cover)



Note:

1. The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.

2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.

3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.

4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.

5. The module mount will affect the communication distance.

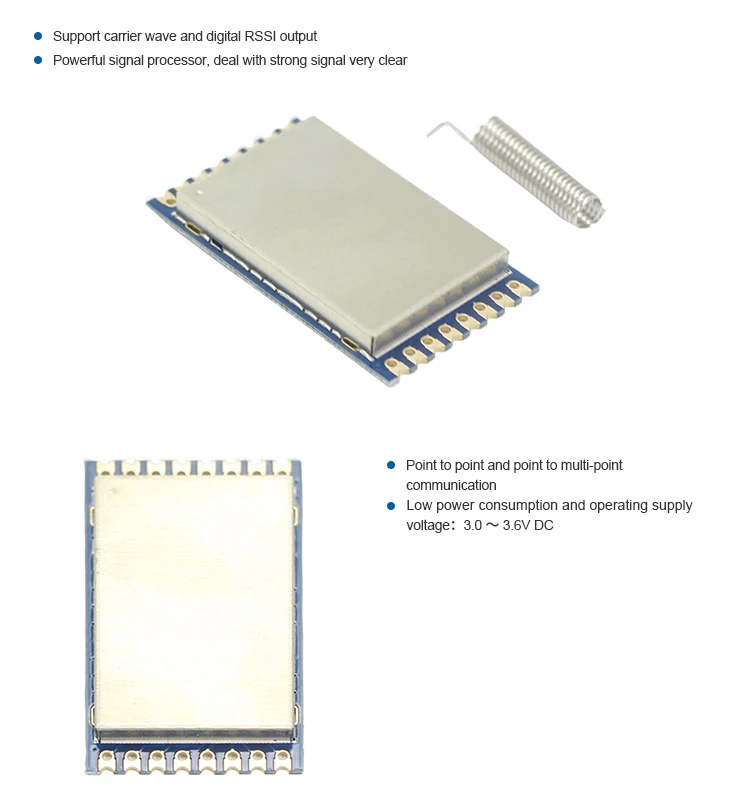

Features




Related Product

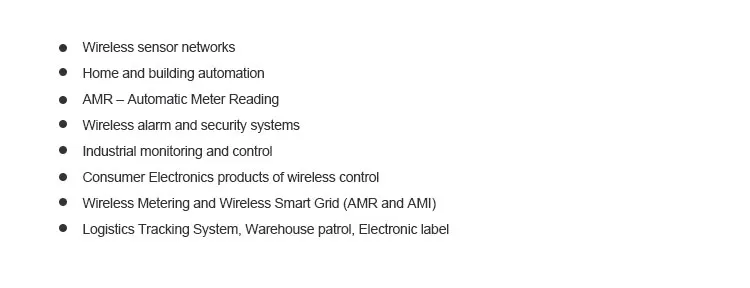

Applications








Pin name

Pin type

Description

RESET_N

Digital in

Reset; low level valid

GDIO3

Digital in/out

Digital I/O, register configuration

GDIO2

Digital in/out

Digital I/O, register configuration

SI

Digital In

Digital in (SPI)

SCLK

Digital In

Time input (SPI)

SO/GPIO1

Digital In/out

Digital output (SPI) or general digital In/out port

GDIO0

Digital In/out

Digital I/O, register configuration

CSN

Digital I/O

Module select (SPI), low level valid

RE

Status control

RX=0,TX=1,SLEEP=0

TE

Status control

RX=1,TX=0,SLEEP=0

GND

ground



ANT

Antenna port

Impedance 50 ohm

3.3V

Work power

DC 3.0-3.6V

VDS

Power amplifier

Power amplifier, default short circuit



Configuration Registers

The configuration of CC1120 can be done with software SmartRF Studio7. Complete descriptions of the registers are given in the CC1120 datasheet. We can provide evaluation board and demo code to the customer to develop and evaluate the module’s capability.



Company Information



Packaging & Shipping


FAQ


Description

Reason and Solution

Can’t communication

1.The power supply connect not well, check the module VCC whether it is out of maximum rating.

2.The signal line connect not well, check the module SPI interface.

3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration.

4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication.

Communication distance is too short

1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna.

2.The work space contains a same frequency interference source, or a strong magnetic field interference, power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance.

3.The power supply is not strong. Check the voltage and the current whether it is enough.

High data error

1.The power supply ripple is too big, Change the power supply.

2.Check the module register configuration, it is recommended to set as the CC1120-datasheet.

3.There is a carrier frequency interference, change the channel.

4.The antenna unmatched to the module RF interface, change another matched antenna.
